15026 - ANNECY WALL/CEILING MOUNTED DOOR ASSEMBLY (KIT)

Description:

The quite designed roller system offers soft motion, capable of bearing load of up to 80kg glass panel. Excellent application for office partitions where space is concern.

Specifications:

• Glass Thickness: 8-10mm
• Max Glass Width: 1000mm
• Max Glass Door Weight: 80kg
• Glass Fabrication Required: Holes required in fixed panel and door

Components:

• 15026-001A/B Roller & Glass Holder, 2 pcs
• 15026-002 Stopper, 2 pc
• 26601-004 Sliding Handle, 1 pc
• 15026-003 End Cap, 2 pcs
• 26601-006 Floor Guide, 1 pc
• 15026-T Overhead Channel 120", 1 pc
• 15026-GC Glass to Track Clamp
• 15026-LC Wall to Track Clamp
• 15026-11 Fixed Channel
• 15026-22 Pass Line

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK

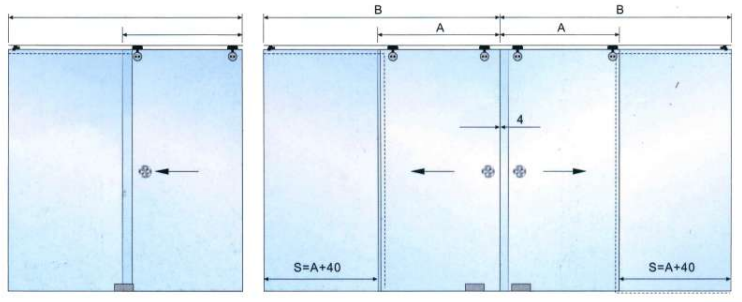

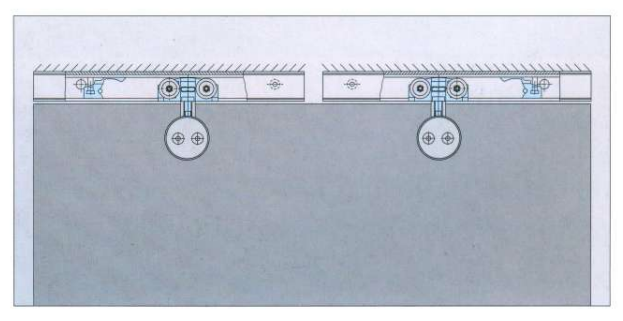

Sketch:
