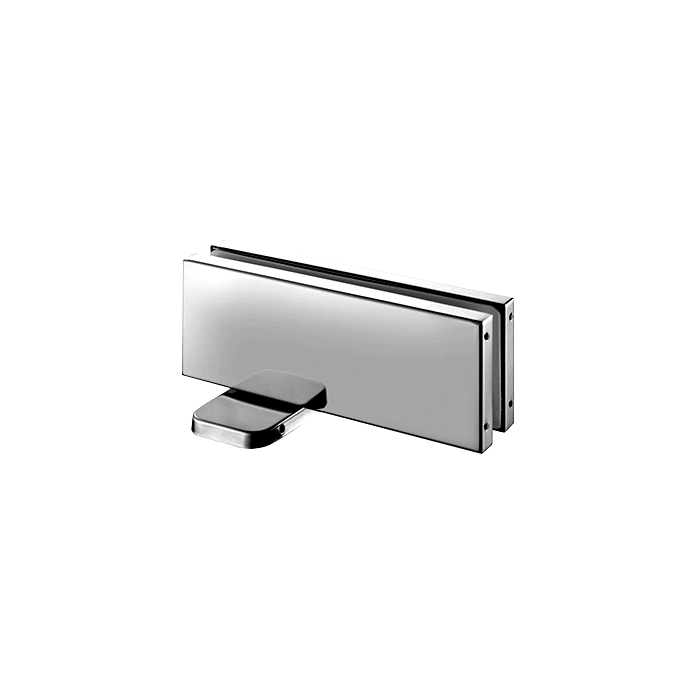

26100 - HYDRAULIC SELF CLOSING BOTTOM PATCH KIT

Description:

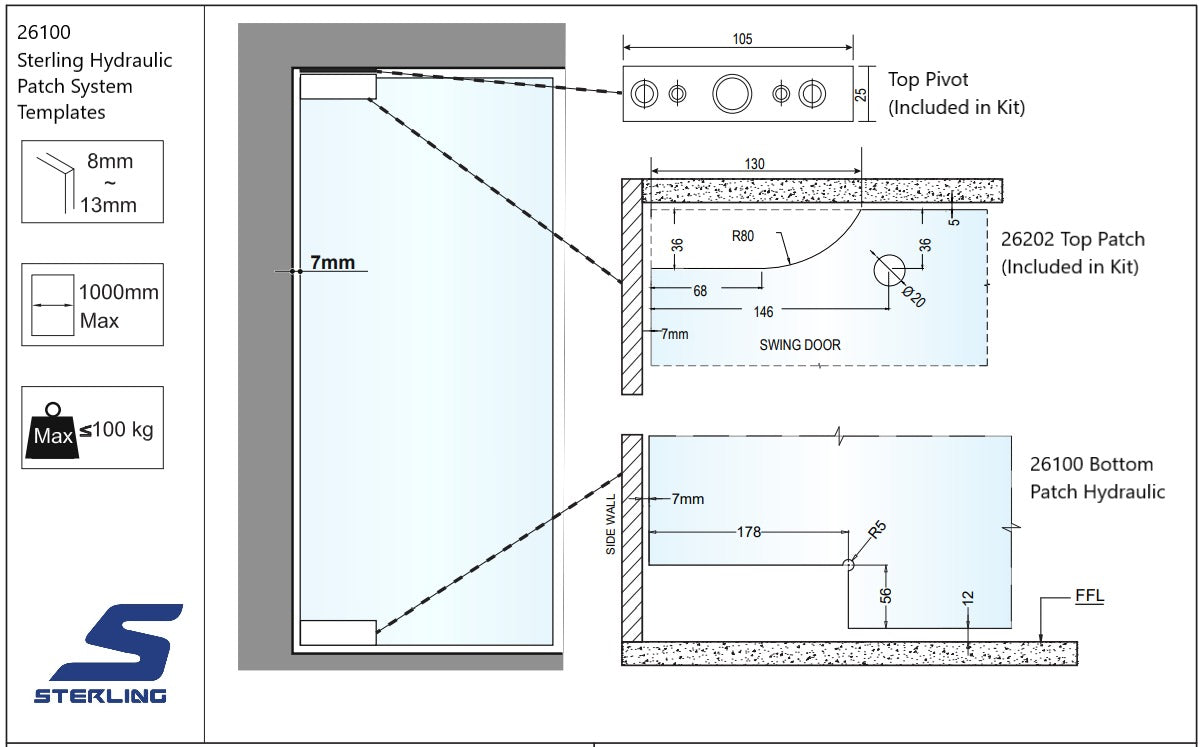

This self-closing patch kit is a sturdy and versatile piece of hardware that you can use in any commercial entrance design. Our hydraulic patch fitting kit fits tempered glass panels ranging from 5/16” (8mm) to 1/2” (12mm) thick. We include gaskets with every self-closing patch fitting so you can easily accommodate the thickness of the glass you’re using. We also have a 1:1 paper template to help you more efficiently fabricate the corner of the glass door panel to fit inside the hinge patch.

HYDRAULIC patch fitting safely holds a door weighing up to 220lbs (100kg) and supports a maximum width of 39” (99.06cm). It includes a full opening range of 150°, offers controlled closure at 135°, and a hold-open feature at 105°. It is also available with No Hold Open if needed Cat# 26100NHO Simply turn the hardware adjustment screws to change the latching speed and swing rate in seconds. With a test-confirmed durability factor of 500,000 open/close cycles and an ambient heat/cold tolerance of -4°F (-20°C) to +123°F (50.5°C), your client will remain satisfied with your work for years to come.

Components:

• Bottom patch
• Top patch
• Pivot

Specifications:

Requires no digging or cutting of floor, quick and easy installation with just four fasteners.

Hold open 90° (non hold open also available)

Easy Installation with base seat adjustable: ±3mm backward and forward,

                                                                         ±3mm left and right, and

                                                                         ±4 alignment adjustment

Compliance With EN 1154 Tested and UL Certified.

Available with SS 304/316 cover.

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD
• SATIN ANODIZED

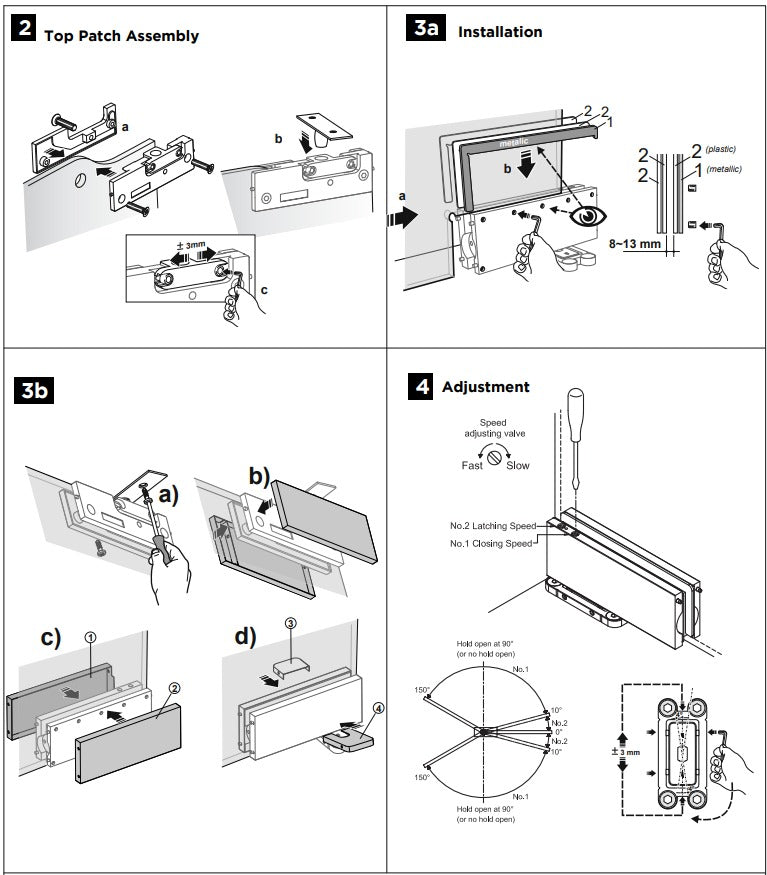

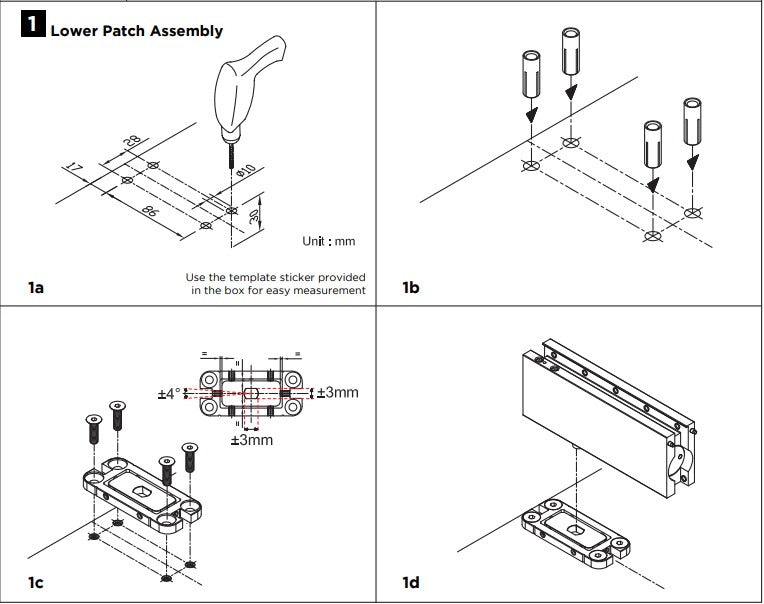

Installation:

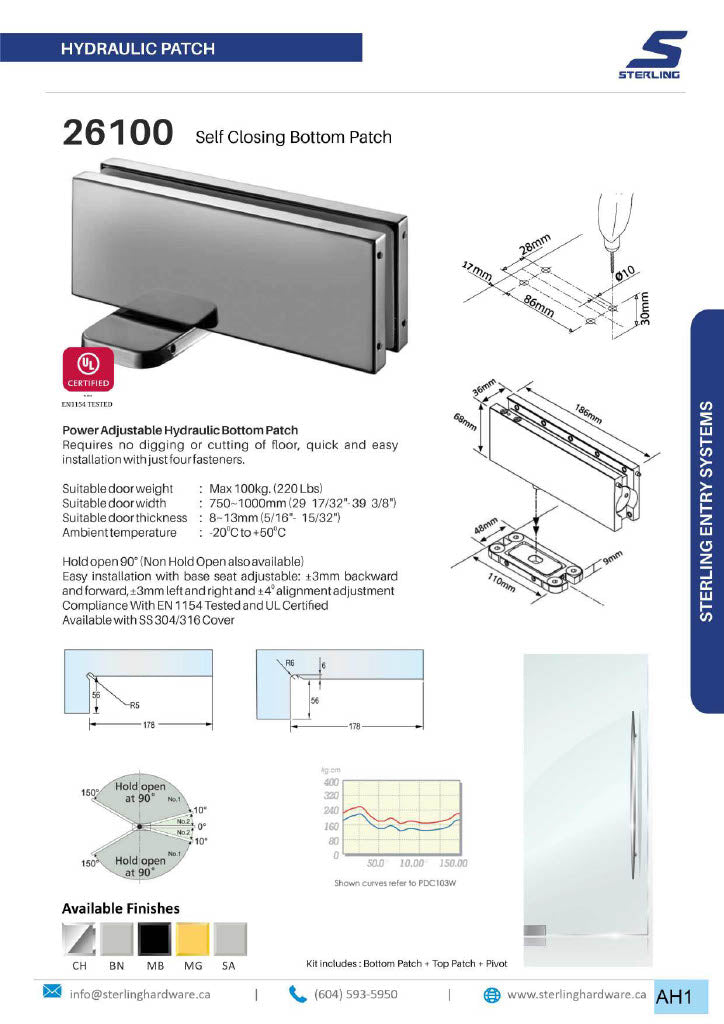

Catalogue:

Disclaimer:

Actual colours may vary. We do our best to ensure that our photos are as true to colour as possible. However, due to photographic lighting sources, inconsistencies of various monitors settings, we cannot guarantee that the colour you see accurately portrays the true colour of the product. Furthermore, every individual may see these colours differently. If you require an exact colour match, please contact us and we can provide a sample.
