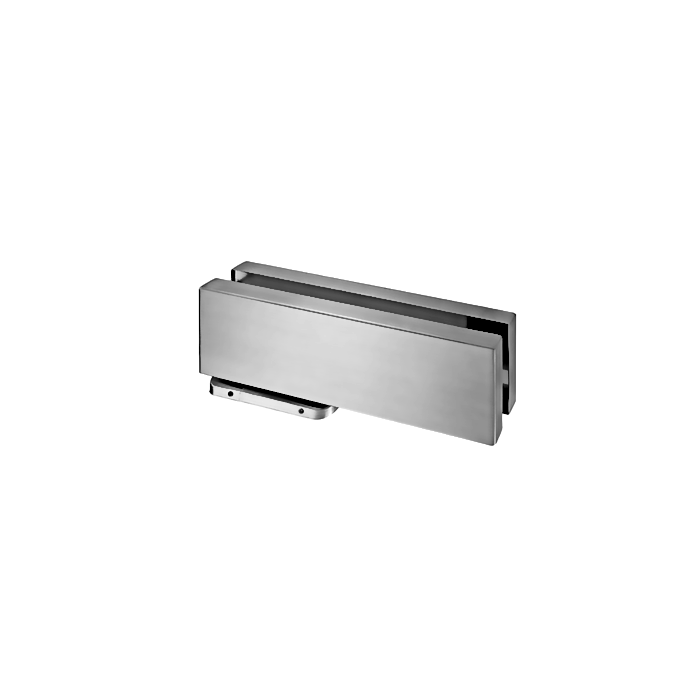

26135 - HYDRAULIC SELF CLOSING BOTTOM PATCH KIT

Components:

• Bottom patch
• Top patch
• Pivot

Specifications:

Requires no digging or cutting of floor, quick and easy installation with just four fasteners.

Hold open 90° (non hold open also available)

Easy installation with base seat adjustable: ±3mm backward and forward,

                                                                         ±3mm left and right, and

                                                                         ±4 alignment adjustment

Compliance With EN 1154 Tested and UL Certified.

Available with SS 304/316 cover.

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD
• SATIN ANODIZED

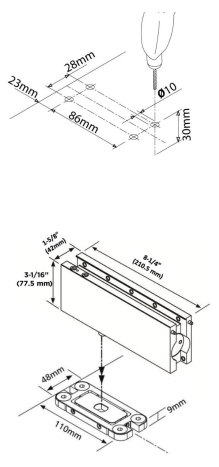

Installation:

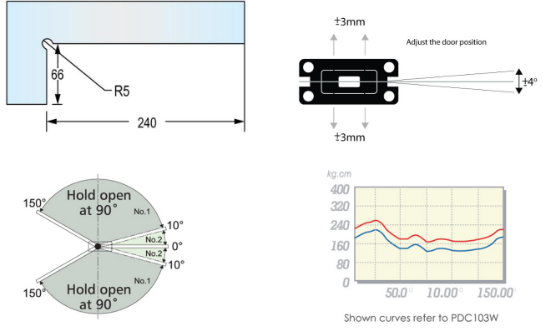

Sketch:

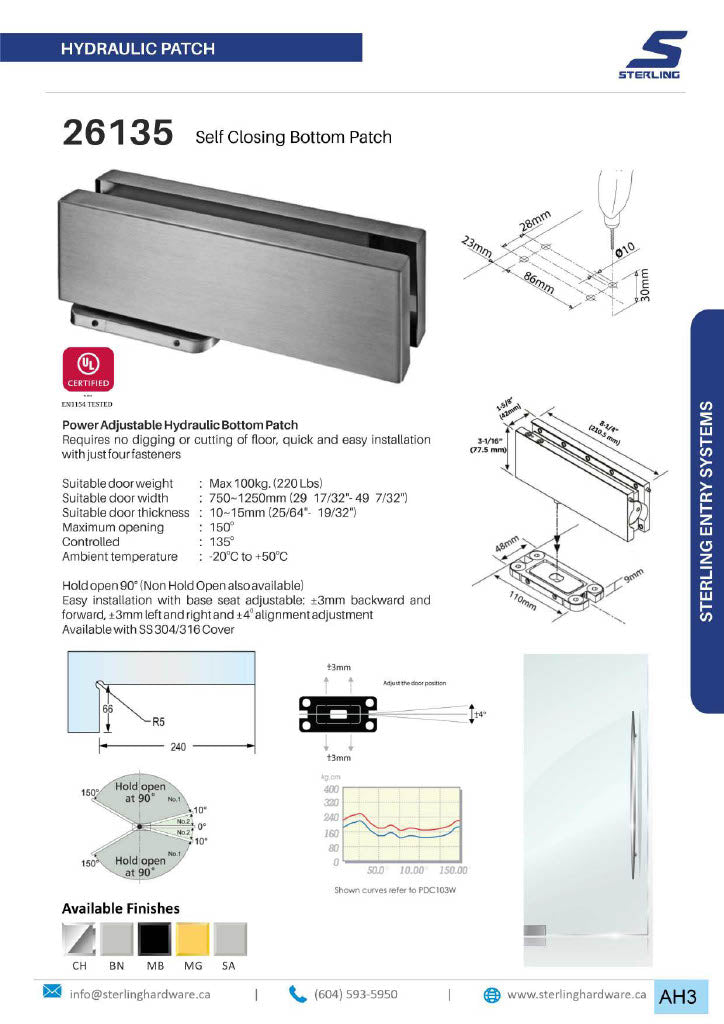

Catalogue:

Disclaimer:

Actual colours may vary. We do our best to ensure that our photos are as true to colour as possible. However, due to photographic lighting sources, inconsistencies of various monitors settings, we cannot guarantee that the colour you see accurately portrays the true colour of the product. Furthermore, every individual may see these colours differently. If you require an exact colour match, please contact us and we can provide a sample.
