26601 - LAGOS STANDARD GLASS/WALL SLIDING DOOR ASSEMBLY (KIT)

Specifications:

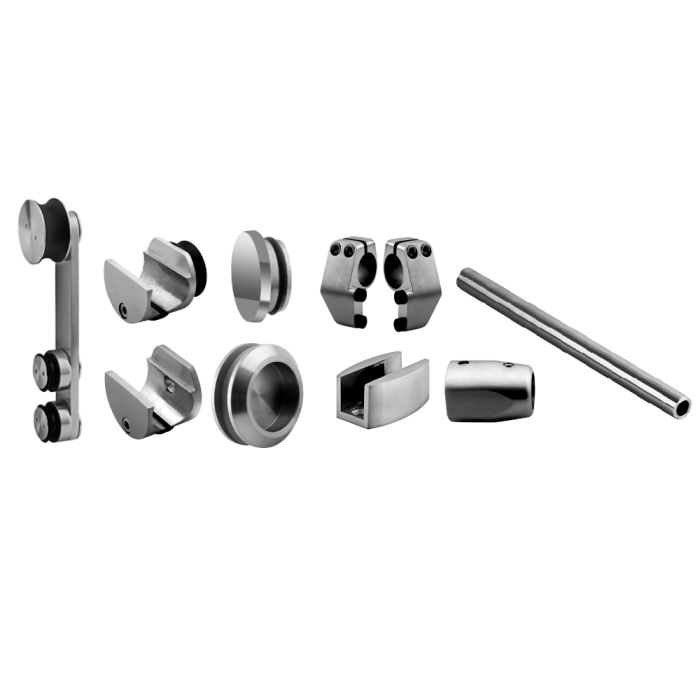

Components:

• 26601-1A Sliding Door Roller, 1 pc
• 26601-2 Clamp Fixing Wall, 5pcs
• 26601-5L Door Stopper, 1 pc
• 26601-004 Sliding Handle, 1 pc
• 26601-5R Door Stopper, 1 pc
• 26601-6 Floor Guide, 1 pc
• 26601-005 End Cap, 2 pcs
• 26601-25H Rod 103", 1 pc

• 26601-7F Pipe Connector
• 26601-3 Clamp Fixing for Track to Connect to Glass

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD

Notes:

The distance for clamp fixing for track, wall fixing:

1. Weight 80kgs: max distance between the clamps=1/2 the width of the door;

2. Weight 80kgs-120kgs: max-distance between the clamps=1/3 the width of the door;

3. Weight 120kgs-150kgs: max-distance between the clamps= 1/4 the width of the door.
