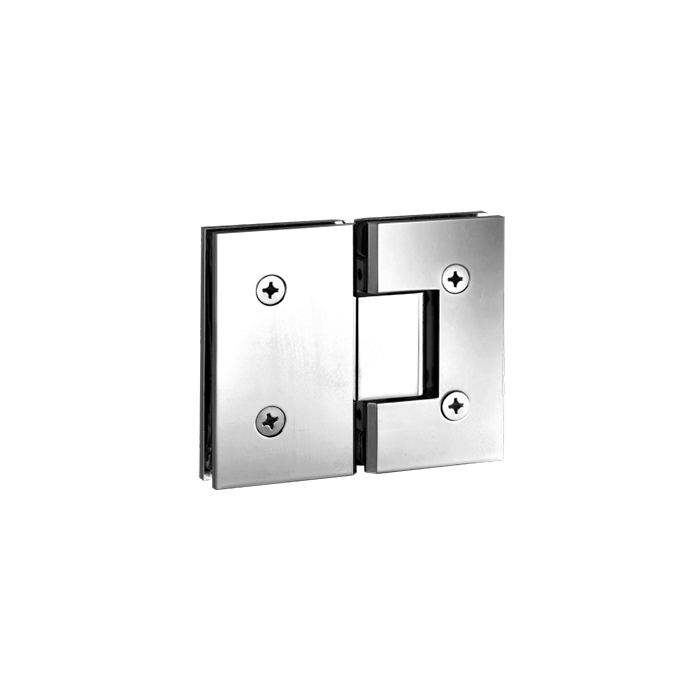

30015 - GLASS TO GLASS 180° HEAVY DUTY SQUARE EDGE HINGE

Description:

Sterling's Ventura Series Glass-to-Glass 180° professional hinges are meant for heavier and wider doors. It is designed to accommodate 3/8" (10mm) to 1/2" (12mm) glass. Made of solid brass with all moving parts (pins and springs) in stainless steel. Includes a variety of gasket options inside the box.

Components:

• Hinge, 1 pc
• Glass template diagram, 1 pc
• Set of gaskets, 2 pcs
• Screws with anchors, 4 pcs

Specifications:

EN1935 100,000 Lifecycles Tested

Material: Solid Brass
Glass Thickness: 3/8" - 1/2" (10-12mm) Tempered Glass
Maximum Door Weight: 50Kgs/2pc or 65kgs/3pcs
Maximum Door Width: 36" (914mm)
Screws available: Philips Screws, Allen Screws
Standard Swing Door Function: 15°

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD
• OIL RUBBED BRONZE
• BRUSHED BRONZE

Notes:

• Do not exceed either maximum weight or width when choosing proper quantity of hinges.
• Washers should be added between glass and shower hinges according to glass.
• All the screws should be fastened and ensure no loosening and sliding in use.
• Regular maintenance should be carried out during the use of shower hinges.
• The shower hinges only for use on tempered glass.
