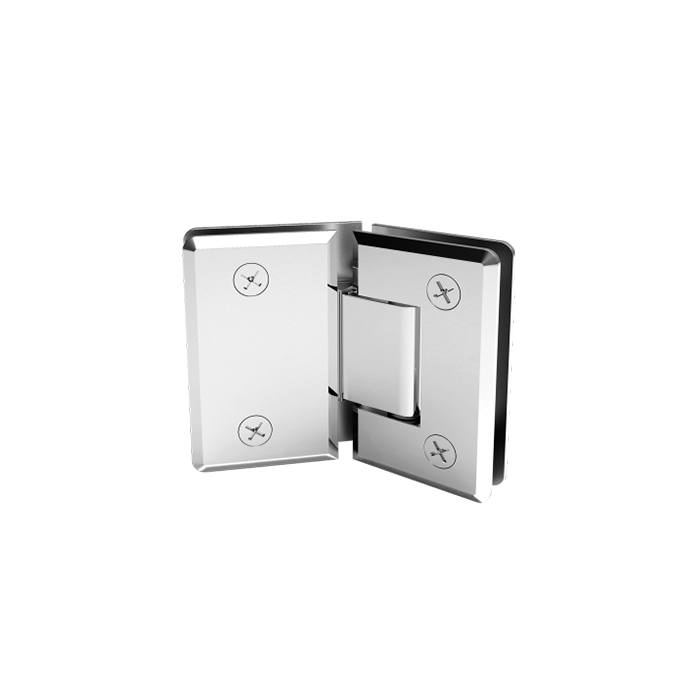

40003 - GLASS TO GLASS 135° BEVELED EDGE HINGE

Description:

Sterling's Pinewood Series Glass to Glass 135° professional hinges are able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. Pinewood hinges are self-centering. In addition, custom pivot pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel. Supplied with a variety of gasket options inside the box.

Components:

• Hinge, 1 pc
• Glass template diagram, 1 pc
• Set of gaskets, 2 pcs
• Screws with anchors, 4 pcs

Specifications:

EN1935 100,000 Lifecycles Tested

Material: Solid Brass
Glass Thickness: 5/16" - 1/2" (8-12mm) Tempered Glass
Maximum Door Weight: 45Kgs/2 Hinges
Maximum Door Width: 32" (800mm)
Screws available: Philips Screws, Allen Screws
Standard Swing Door Function: 15°

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD
• OIL RUBBED BRONZE
• BRUSHED BRONZE

Notes:

• Do not exceed either maximum weight or width when choosing proper quantity of hinges.
• Gaskets should be added between glass and shower hinges according to glass.
• All the screws should be fastened and ensure no loosening and sliding in use.
• Regular maintenance should be carried out during the use of shower hinges.
• The shower hinges only for use on tempered glass.
