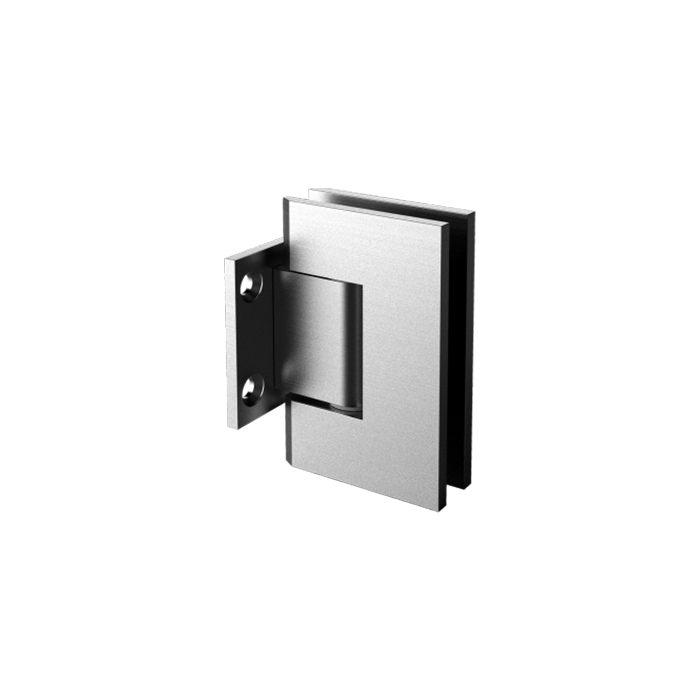

50007 - WALL TO GLASS SHORT BACK PLATE HEAVY DUTY SQUARE EDGE ADJUSTABLE HINGE

Description:

Sterling's Genova Series Short Back plate adjustable professional hinges are able to accommodate 5/16" (8mm) to 1/2" (12mm) glass. Adjustment to accommodate the required angle (up to 90°) is done after the door is installed.

After hanging the door, by loosening the adjustment screws and turn the door to the desired closed position. By tightening the adjustment screws, the door will self-center to the required closing position. The door can swing 90° inward and 90° outward (adjusting angle from factory set position will reduce 90° swing in that direction).

Made of solid brass with all moving parts (pins and springs) in stainless steel. Supplied with a variety of gasket options inside the box.

Components:

• Hinge, 1 pc
• Glass template diagram, 1 pc
• Set of gaskets, 2 pcs
• Screws with anchors, 4 pcs

Specifications:

EN1935 100,000 Lifecycles Tested

Material: Solid Brass
Glass Thickness: 5/16" - 1/2" (8-12mm) Tempered Glass
Maximum Door Weight: 45Kgs/2 Hinges
Maximum Door Width: 32" (800mm)
Screws available: Philips Screws, Allen Screws
Standard Swing Door Function: 15°

Available Finishes:

• CHROME
• BRUSHED NICKLE
• MATT BLACK
• MATT GOLD
• OIL RUBBED BRONZE
• BRUSHED BRONZE

Notes:

• Do not exceed either maximum weight or width when choosing proper quantity of hinges.
• Gaskets should be added between glass and shower hinges according to glass.
• All the screws should be fastened and ensure no loosening and sliding in use.
• Regular maintenance should be carried out during the use of shower hinges.
• The shower hinges only for use on tempered glass.
